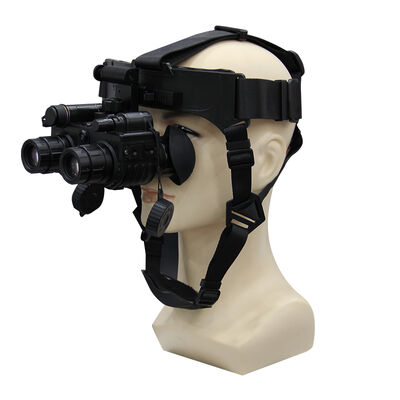

NVG-D3 third generation helmet-mounted binocular low-light night vision
| MOQ: | 1 |
| Price: | 15-7000(USD) |
| Standard Packaging: | Carton |
| Delivery Period: | In stock |
| Payment Method: | T/T |
| Supply Capacity: | Spot goods: 3-7 days Customized/imported products: 15-60 days |
helmet-mounted night vision goggles
,third generation low-light binoculars
,NVG-D3 night vision goggles
Product Description:
The NVG-D4 is a groundbreaking, multi-functional low-light night vision system designed to deliver unparalleled situational awareness in complete darkness. Utilizing a high-performance quasi-third-generation (Quasi-Gen 3) image intensifier, it combines exceptional clarity, lightweight design, and a revolutionary four-tube panoramic layout to provide an immersive 120° horizontal field of view—far exceeding traditional binocular night vision devices.
Key Features & Design:
-
Panoramic Quad-Tube System: Features four independent image intensifier tubes and objective lenses. The two central lenses provide forward depth perception like standard goggles, while the two outward-facing lenses significantly expand peripheral vision. The overlapping images create a seamless, ultra-wide 120° × 50° field of view.
-
Superior Quasi-Gen 3 Performance: Equipped with high-sensitivity tubes offering excellent resolution (64–72 lp/mm), high signal-to-noise ratio (28–32), and outstanding brightness gain for crisp, high-contrast imaging in extreme low-light conditions.
-
Robust & User-Friendly: Built-in 850nm infrared auxiliary illuminator enables operation in zero-light environments. Includes auto-gating for strong light protection, an orientation-sensing auto on/off function, and manual interpupillary distance adjustment (58–72mm) for a secure, customized fit.
-
Compact and Lightweight: Engineered for extended wear, the housing is durable yet lightweight, weighing only 780g (without battery). Powered by standard CR123A lithium batteries, it offers long operation time (30–80 hours) for sustained field missions.
Ideal Application Fields:
This professional-grade system is the optimal choice for military observation, border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling operations, and patrol duties for armed police, special forces, and security details.
Technical Specifications Summary:
| Parameter | Specification |
|---|---|
| Model / Style | NVG-D4 / GPNVG18+ |
| Image Intensifier | Quasi-Generation 3 |
| Magnification | 1X |
| Field of View | 120° × 50° |
| Resolution | 64–72 lp/mm |
| SNR | 28–32 |
| FOM | 1600–2300 |
| Objective Lens | F1.2, 22.5mm |
| Focus Range | 0.25 m to ∞ |
| IPD Adjustment | 58–72 mm (continuous) |
| IR Illuminator | 850 nm |
| Power Supply | 1× or 4× CR123A Lithium Battery |
| Battery Life | 30–80 hours |
| Dimensions (L×W×H) | 200 × 136 × 83 mm |
| Weight | 780 g (without battery), ~850 g (with battery) |
