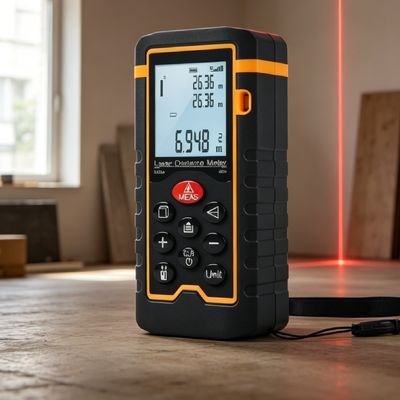

Indoor infrared rangefinder, distance measuring electronic ruler, laser rangefinder
Detail Information
Measurement Accuracy:
0.05~40m(HT-40)0.05-60m(HT-60)0.05-80m(HT-80)0.05~100m(HT-100)
Measurement Unit:
Feet/inch/meter
Laser Class:
Class II
Laser Type:
620~670nm, <1mW
Data Storage:
20 Sets
Operating Temperature:
0℃~40℃ (32°F~104°F)
Storage Temperature:
-20℃~60℃ (-4°F~140°F)
Size:
116mmx56mmx32mm
Product Model:
HT-40 HT-60 HT-80 HT-100
Highlight:
indoor infrared rangefinder
,laser rangefinder distance measuring
,electronic ruler rangefinder
Product Description
1. Product Overview
It is a portable high-precision Class II red laser rangefinder. Adopting laser pulse ranging technology, it effectively avoids the measurement errors of traditional ultrasonic measuring tools with stable and accurate readings. Compact and lightweight, it comes with a full set of storage accessories, allowing single-person rapid distance measurement. Widely applied in home decoration, construction sites, industrial plants, urban site planning and other measuring scenarios, it is an essential lightweight measuring device for engineering workers.
Standard Full Accessories
- Main laser distance meter ×1
- Leather portable storage pouch ×1
- Anti-lost wrist lanyard ×1
- 2pcs AAA 1.5V alkaline batteries
- Printed user manual ×1
2. Core Product Advantages
- Ultra-high Measuring Accuracy with Tiny Error
Effective measuring range covers 0.05m to 100m, with a constant tolerance of ±2mm. It delivers stable and reliable data whether for short-distance indoor house measuring or 60-meter long-distance outdoor surveying, eliminating human errors and environmental interference from steel tapes and ultrasonic meters.
- Class II Safe Red Laser
Equipped with 620~670nm visible red laser with power less than 1mW, complying with Class II laser safety standard, which is harmless to human eyes under normal use. The clear red laser spot enables fast targeting on walls, cement ground and metal panels, suitable for both indoor and outdoor use.
- One-button Switch for Multiple Measuring Units
Supports three measuring units: meter, foot and inch. It meets the demands of domestic construction projects and overseas foreign trade projects without manual unit conversion, offering intuitive readings.
- 20 Groups Data Storage for Batch Survey
Built-in data storage chip can save up to 20 sets of historical measurement data. No paper and pen are needed during multi-point acceptance and multi-house measuring; historical data can be checked at any time to greatly boost working efficiency.
- Ultra-long Battery Life
Powered by 2pcs AAA 1.5V alkaline batteries. Fully charged batteries support up to 5000 measuring operations, reducing frequent battery replacement and lowering daily operation cost for long-term site use.
- Wide Temperature Adaptability & Good Storage Resistance
Working temperature ranges from 0℃ to 40℃, ensuring stable performance for outdoor operation in spring, summer and autumn as well as normal-temperature workshops. Storage temperature ranges from -20℃ to 60℃. Its internal optical and circuit components will not be damaged under low-temperature winter storage or high-temperature car storage, requiring no special temperature control during transportation and storage.
- Portable & Wear-resistant Body Design
Mini handheld size fits workwear pockets and tool kits, matched with leather storage pouch and anti-lost lanyard. The anti-slip and drop-resistant shell withstands minor bumps on construction sites, easy to carry and not easy to lose.
- User-friendly Operation, Zero Learning Cost for Starters
Function buttons are clearly divided for ranging, unit switching and data checking. Easy operation without professional training, suitable for decoration and construction beginners.
3. Detailed Specification Table
| Item | Technical Parameter |
|---|---|
| Effective Measuring Range | 0.05~40m(HT-40)0.05-60m(HT-60)0.05-80m(HT-80)0.05~100m(HT-100) |
| Measuring Accuracy | ±2mm |
| Laser Class | Class II |
| Laser Specification | 620~670nm red laser, power ＜1mW |
| Data Storage Capacity | 20 groups of measurement data |
| Optional Measuring Units | Meter(m) / Foot(ft) / Inch(in) |
| Operating Temperature | 0℃~40℃ (32℉~104℉) |
| Storage Temperature | -20℃~60℃ (-4℉~140℉) |
| Power Supply | 2pcs AAA 1.5V alkaline batteries |
| Battery Service Life | Support 5000 measurement operations |
| Standard Accessories | Main unit, leather storage pouch, wrist lanyard, user manual, matched batteries |
4. Application Scenarios
- Interior Decoration & Real Estate House Measuring
Size measurement for home renovation, rough house acceptance, measurement of floor height, doors, windows and walls, on-site survey for real estate agents. It replaces traditional steel tape and cuts down measuring time greatly with single-person operation.
- Civil Engineering & Construction Sites
Dimension inspection of floor spacing, beams, columns and construction sites, batch data collection for project acceptance, applicable to surveying work of residential and commercial buildings.
- Urban Road & Park Site Planning
Distance and area calculation for squares, parking lots and park open spaces, pre-planning survey for medium and small outdoor sites.
- Industrial Plant Measurement
Spacing measurement of workshop equipment, size survey of warehouse shelves and pipeline distance detection in factories. It satisfies measuring requirements for domestic factories and overseas foreign-owned plants.
- Property Maintenance & Small Outdoor Engineering
Distance measurement for community public area maintenance, measurement of small steel structures and outdoor equipment installation. The wide-temperature body adapts to outdoor work in all seasons.
