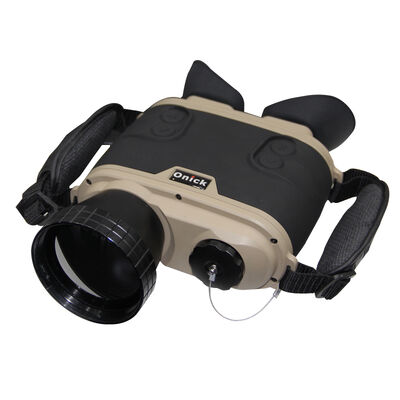

Onick RE640 long range thermal binocular
| MOQ: | 1 |
| Price: | 15-7400(USD) |
| Standard Packaging: | Carton |
| Delivery Period: | Spot goods: 3-7 days Customized/imported products: 15-60 days |
| Payment Method: | T/T |
| Supply Capacity: | In stock |
Detail Information
Product Description
Product description
Onick RE640 .law enforcement,and homeland security professionals.HD high resolution LCOS micro displays offer big screen style immersive viewing capabilities whice is pleasant to the eye and Aids in reduced eye strain and fatigue.
Product advantages
- quality superior performance in harsh environment
- Real-time display and high thermal sensitivity
- waterproof IP66encapsulation
- portable and multi-purpose,tripod/handheld,wear around your neck with the band.
Middle and long detection range
- Detection range of human: 2.0km
- Recognition range of human: 0.7km
- Detection range of vehicle: 3.5km
- Recognition range of vehicle: 1.5km
Application
- security
- outdoors
- rescue
- hunting
- guard
Main parameter
| Category | Parameter | Value |
|---|---|---|
| model | Onick RE640 | |
| Detector type | Uncooled microbolometer | |
| Thermal sensor resolution | 640x480 px, 17μm | |
| Spectral range | 8～14μm | |
| Frame rete | 50Hz | |
| NETD | ＜60mK@300k(F1.0) | |
| Micro dispaly | 800×600 OLEDdispaly | |
| Image processing | Startup time | ＜5s |
| Noise reduction | Digital filtering | |
| E-zoom | 2x/4x | |
| focus | Motorized(automatic) focusing | |
| Image adjustment | White hot/black hot/multiple colormodes | |
| Optical parameter | Focal length | 75mm |
| F# | 1.0 | |
| Field of view | 8.3°×6.2° (HxV) | |
| Video recording and storage | Photo snap | JPEG |
| Video recording | MPEG4 | |
| Video storage | Recording format 640x480,built-in 16Gb | |
| Video output | Analog:BNC Digital:USB2.0 | |
| wifi | Yes | |
| Observation distance | Persons(standing man) | detection:2.0km recognition:0.7km |
| Vehicle (NATO Tank) | detection:3.5km recognition:1.5km | |
| Power parameter | power | 1x26650 rechargeable lithium battery |
| Power consumption | ＜3.0W(observation operation) | |
| Operating hours | Continuous working time;≥6hours | |
| Environmental parameters | Seal standard | IP66 |
| Operating temperature | -30°C～+50°C | |
| Storage temperature | -40°C～+60°C | |
| humidity | 5%-95%(Non-condensing) | |
| vibration | Sweep frequency:5-200-5Hz,G-force:2.5g | |
| impact | 30g/11ms Half sine wave | |
| Physical parameters | Product weight | 1.089kg(excluding battery) |
| Dimension(mm) | 220x170x85(LxWxH) | |
| Mount adaptor | STANG 1/4′tripod mountting |
