IF Series Handheld Thermal Imaging
| MOQ: | 1 |
| Price: | 100-50000(CNY) |
| Standard Packaging: | Carton |
| Delivery Period: | Spot goods: 3-7 days Customized/imported products: 15-60 days |
| Payment Method: | T/T |
| Supply Capacity: | In stock |
Detail Information
Highlight:
IF Series handheld thermal imager
,thermal imaging binocular with warranty
,compact handheld thermal imaging device
Product Description

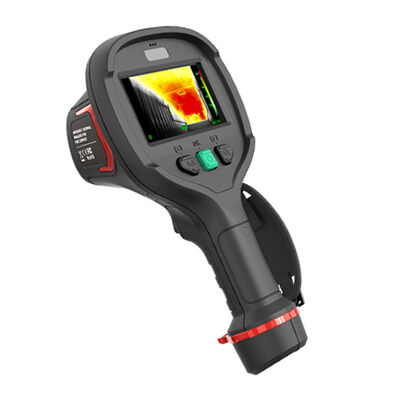

IF Series Handheld Thermal Imaging
Product Overview
The IF series fire-fighting infrared thermal imager is a dual-purpose rescue/detection infrared thermal imager, empowering firefighters with a new perspective. This intrinsically safe and explosion-proof certified product integrates high resolution, large display screen, multiple scene modes, temperature analysis functions, and strong protection rating. It overcomes limitations of harsh environments including high temperature, high humidity, and dense smoke in fire scenes, helping firefighters quickly and clearly see their surroundings, accurately locate fires, and search for trapped personnel.
Key Features
- Clear and smooth image: Up to 640*512 infrared resolution, 65Hz frame rate with anti-reflective display screen
- Ultra-wide temperature measurement: -40°C to 2000°C range with temperature analysis and over-temperature alarms
- High temperature durability: Full operation at 260°C for up to 5 minutes; IP67 waterproof and dustproof; withstands 2-meter drop
- Command and control: Supports image transmission via 4G/5G single-soldier modules for direct transmission to command centers
- Multifunctional components: Charging dock with charging/data transmission, retractable lanyard, and optional visible light module
Application Scenarios
- Fire reconnaissance: Real-time imaging determines fire location and spread direction for effective combat planning
- Fire suppression assistance: Identifies high-temperature objects, accumulated smoke, and burning sources for accurate extinguishing
- Search and rescue: Quickly locates trapped personnel in dark, smoke-filled environments for timely rescue operations
- Fire prevention inspection: Temperature distribution analysis and image storage assist in preventive inspections
Technical Specifications
Image and Optics
| Detector Type | Uncooled vanadium oxide, 7.5~14μm |
| Infrared Resolution | 384*288@12μm / 640*512@12μm |
| NETD | 45mK |
| Frame Rate | 65Hz |
| Focal Length | 9mm |
| Field of View | 50°*37° |
| Spatial Resolution | 2.3mrad |
| Focusing Method | Focus-free |
| Digital Zoom | 2x/4x/8x |
Measurement and Analysis
| Temperature Measurement Range | Automatic range switching: -40°C~150°C, 0°C~650°C, selectable 500°C~2000°C (aperture required) |
| Temperature Measurement Accuracy | ±2°C or ±2%, whichever is greater |
| Analysis Object | 3 temperature measurement points (center point/highest temperature/lowest temperature), three fixed temperature measurement areas (Small/Medium/Large) |
| Temperature Threshold Alarm | Supports vibration/screen flashing/buzzer alarm |
Image Display
| Display | 4.3-inch LCD screen, 800*480 pixels |
| Image Modes | 7 modes: Basic fire mode, black and white mode, fire scene mode, search and rescue mode, thermal detection mode, standard infrared mode, visible light mode (with visible light module) |
| Infrared Mode Color Palette | 8 colors: Black heat, White heat, Iron red, Arctic, Hot iron, Rainbow 1, Lava, Red tracing |
| 13 Image Mode Selections | Photo/Video recording, OTA upgrade |
| Laser Range | 0-600m |
Storage and Transmission
| Storage Media | Built-in 128G |
| Image Storage | JPG format (with temperature data) |
| Video Storage | MP4 format (without temperature data); Irgd format (with temperature data) |
| External Interfaces | Type-C, Micro HDMI Tripod Interface |
| WIFI | Supported, allows connection to mobile devices for image and real-time video transmission |
Power System
| Battery Type | Rechargeable lithium battery |
| Battery Life | 4 hours |
Environmental Parameters
| Operating Temperature | General: -10°C to +50°C; Specific: 80°C (30 minutes), 120°C (10 minutes), 260°C (5 minutes) |
| Protection Rating | IP67 |
| Drop Test | 2m drop |
Physical Parameters
| Hardware Modules | WIFI, Speaker |
| Weight | 1.3kg (including battery) |
| Dimensions | 296*122*153mm |
| Optional Accessories | Visible light module, battery, tripod |
