RE640 Multifunctional Long Range Thermal Imaging Binocular 2km Human Detection OLED Display
| MOQ: | 1 Piece |
| Price: | USD 15-7400 / Piece |
| Standard Packaging: | Carton |
| Delivery Period: | Spot goods: 3-7 days; customized or imported products: 15-60 days |
| Payment Method: | T/T |
| Supply Capacity: | In stock |
Multifunctional Long Range Thermal Binocular
,IP66 Waterproof Thermal Imaging Optic
,2km Human Detection Thermal Device

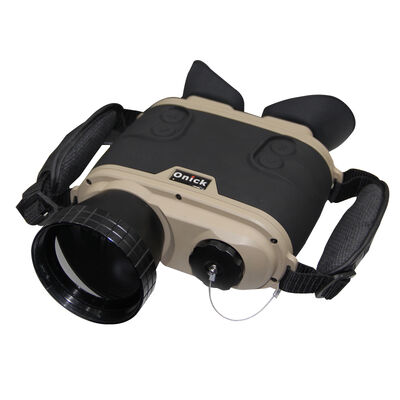

RE640 Multifunctional Long Range Thermal Imaging Binocular
One thermal optic for detection, recognition and recording: 2km human detection with a 640×480 thermal sensor.
Product Overview
The Onick RE640 is a multifunctional long range thermal imaging binocular. A 640×480 uncooled microbolometer sensor and 75mm F1.0 lens deliver clear thermal images by day or night, while the 800×600 OLED micro display gives an immersive, low-strain viewing experience. It combines long range detection, image recording and rough-environment protection in a single handheld unit.
Multifunctional Advantages
Long Range Thermal Detection
Human detection up to 2.0km (recognition 0.7km) and vehicle detection up to 3.5km (recognition 1.5km) make it suited to surveillance, patrol and search work.
Sharp 640×480 Thermal Imaging
The uncooled microbolometer sensor with NETD below 60mK at 300K resolves small temperature differences for detailed thermal pictures.
Multi-Scenario Viewing & Recording
White-hot, black-hot and multiple color modes, 2x/4x E-zoom, motorized focus and built-in MPEG4 video / JPEG photo recording with 16Gb storage cover observation and documentation in one device.
Multi-Purpose Mounting
A 1/4" tripod thread plus handheld and neck-band use let operators adapt the binocular to different field situations.
Rough Weather Protection
IP66 sealing and a -30°C to +50°C operating range keep the unit working in rain, dust and harsh temperatures.
Typical Uses
- Security and border patrol
- Outdoor and night observation
- Search, rescue and fire support
- Hunting and guard duty
Product Specifications
| Model | Onick RE640 |
| Type | Long Range Thermal Imaging Binocular |
| Detector | Uncooled microbolometer |
| Thermal Resolution | 640x480 px, 17μm |
| Spectral Range | 8～14μm |
| Frame Rate | 50Hz |
| Micro Display | 800×600 OLED |
| E-Zoom | 2x / 4x |
| Focal Length | 75mm F1.0 |
| Field of View | 8.3°×6.2° |
| Human Detection | detection 2.0km / recognition 0.7km |
| Vehicle Detection | detection 3.5km / recognition 1.5km |
| Waterproof Grade | IP66 |
| Dimension | 220×170×85mm |
| Net Weight | 1.089kg (excluding battery) |
Powered by a single 26650 rechargeable lithium battery with over 6 hours of continuous working time, the RE640 pairs long range detection with a sealed, portable body. Contact us for bulk pricing and configuration options.
