RE640 Multifunctional Portable Thermal Imaging Binocular IP66 Waterproof Handheld Tripod Mount
| MOQ: | 1 Piece |
| Price: | USD 15-7400 / Piece |
| Standard Packaging: | Carton |
| Delivery Period: | Spot goods: 3-7 days; customized or imported products: 15-60 days |
| Payment Method: | T/T |
| Supply Capacity: | In stock |
Multifunctional Portable Thermal Binocular
,IP66 Waterproof Thermal Imaging Optic
,Handheld Tripod Mount Thermal Device

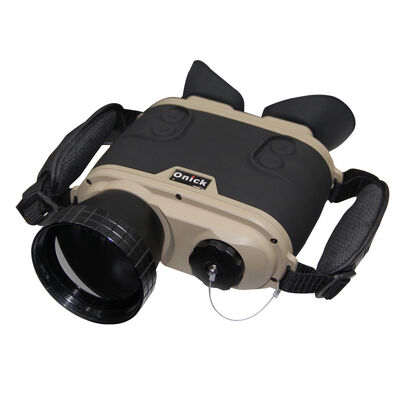

RE640 Multifunctional Portable Thermal Imaging Binocular
Portable, sealed and ready anywhere: an IP66 thermal imaging binocular for handheld, tripod and neck-strap use.
Product Overview
The Onick RE640 is a multifunctional portable thermal imaging binocular built for field flexibility. Its 640×480 uncooled microbolometer sensor delivers real-time thermal imaging at 50Hz, while a 1/4" tripod mount, handheld grip and neck band let users deploy it however the job demands. A sealed IP66 body and 16Gb of built-in recording keep observation and documentation in one compact unit.
Multifunctional Advantages
Portable Multi-Mount Design
Handheld, tripod-mounted and neck-band operation in one device, so the same binocular suits quick scanning and fixed long observation.
IP66 Sealed Construction
An IP66 waterproof enclosure rated for -30°C to +50°C protects the optics in rain, dust and temperature swings.
50Hz Real-Time Thermal Imaging
The 640×480 sensor with online image processing and digital noise reduction keeps the thermal picture smooth and clear.
Recording & Connectivity
Capture MPEG4 video and JPEG photos to 16Gb built-in storage, with BNC, USB2.0 and WiFi output for sharing and review.
Long Range Observation
Human detection up to 2.0km and vehicle detection up to 3.5km support patrol, rescue and outdoor surveillance.
Typical Uses
- Portable thermal patrol and surveillance
- Outdoor night observation
- Rescue and fire support
- Hunting and guard duty
Product Specifications
| Model | Onick RE640 |
| Type | Long Range Thermal Imaging Binocular |
| Detector | Uncooled microbolometer |
| Thermal Resolution | 640x480 px, 17μm |
| Spectral Range | 8～14μm |
| Frame Rate | 50Hz |
| Micro Display | 800×600 OLED |
| E-Zoom | 2x / 4x |
| Focal Length | 75mm F1.0 |
| Field of View | 8.3°×6.2° |
| Human Detection | detection 2.0km / recognition 0.7km |
| Vehicle Detection | detection 3.5km / recognition 1.5km |
| Waterproof Grade | IP66 |
| Dimension | 220×170×85mm |
| Net Weight | 1.089kg (excluding battery) |
With a rechargeable 26650 lithium battery giving over 6 hours of continuous use, the RE640 combines portable operation with long range thermal performance. Contact us for bulk pricing and tailored configurations.
