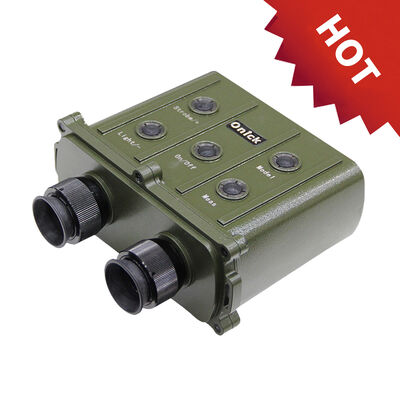

10000CI binocular long-distance laser rangefinder
| MOQ: | 1 |
| Price: | 15-7400(USD) |
| Standard Packaging: | Carton |
| Delivery Period: | Spot goods: 3-7 days Customized/imported products: 15-60 days |
| Payment Method: | T/T |
| Supply Capacity: | In stock |
Detail Information
Highlight:
10000CI binocular laser rangefinder
,long-distance laser range finder
,binocular rangefinder with warranty
Product Description
Function description
- (1)Trigger key emit Laser.
- (2)Model key: enter menu.
- (3)Gate/+ :Long press as strobe in normal state,Up keyNumerical correction or menu selection.
- (4)On/Off Power on, quit the current state.
- (5)Light /- :Long press to on normally/Turn off panel lighting(LED on/off),Down key: Numerical correction or menu selection.
- (6)Connect plug: transmit data between range finder and Peripheral equipment.
- (7) OLD screen display data:Range value,Azimuth angle,Pitch and opteration function character.
- (8) Ocular Aim at the target.
product information
1. Location parameter
- (1)Max range:10000m
- (2)Measuring range:30 ~ 10000 m
- (3)Ranging error:±0.5m
- (4)Gate:20 ~ 5120 m ( step 10m)
- (5)Accuracy rate :98%
- (6)Working frequency:1/6 ~ 1/3 Hz
- (7)Compass Accuracy:±0.5° Optional
- (8) Precision of angle:±0.1°(In±25°) Optional
⒉ Functions
- ⑴ Get average data
- ⑵Save data(max 1000)
- ⑶Transmit data(output: RS232,2400,8,N,2)
- ⑷ Adjust the brightness of screen and reticle, close the light when no operation in continuous 20 seconds.
- ⑸ Count work times
- ⑹ Index last ten data
- ⑺ Query serial number
- ⑻ Query storage data
⒊ Optical parameters
- ⑴Receiving diameter: Φ30mm
- ⑵Field of view 6.5°
- ⑶Magnification:7X
⒋ Laser parameter
- ⑴ Laser type:Nd:YAG
- ⑵Wavelength:1.064μm
- ⑶Output energy:≥5 mj
- ⑷ Life: ≥20000times
⒌ Working temperature
-10℃ ~ +50℃
⒍ Environmental adaptation
Dustproof waterproof shockproof
⒎ Mechanical parameters
- ⑵Size:151mm*154mm*74mm
- Weight:1 Kg
⒏ Power supply
- 18650 batteries(11.1伏,3000 mAh),At normal temperature working life over 3000times
Use of charger
Insert the output plug of the charging adapter into the instrument socket, and then plug the plug of the charging adapter into the AC 100~240V power supply. At this point, the red indicator light of the charging adapter is on, indicating that charging is under way. Red indicator lights off after full, green indicator lights on. After charging, unplug the charging adapter from the AC power supply, and then unplug the output plug from the instrument socket.
